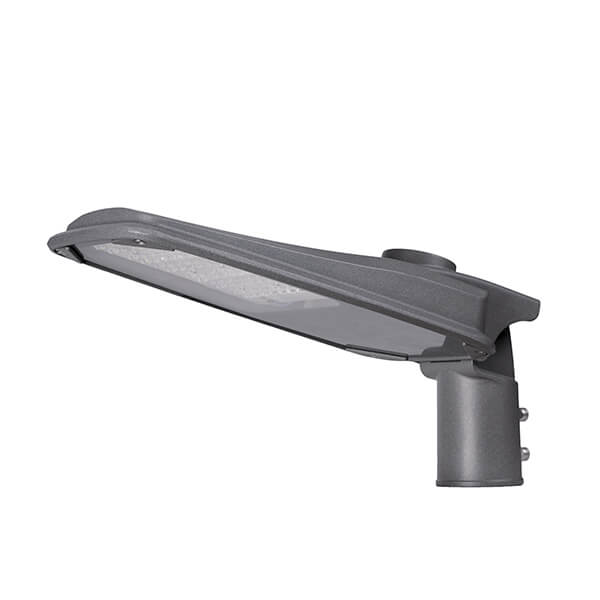

Outdoor Lighting Led Street Road Lights Manufacturer AGSL01

AllGreen Outdoor Led Street Road Lights Lighting Manufacturer
High lumen Efficiency up to 170lm/W
90° Adjustable Arm
Streamlined Design
Multiple Beam Angle
Photocell/NEMA/Zhaga Optional
Beam Angle:60°/90°/120°
LED Brand: Lumileds/Osram/Nichia/Cree
Driver: Meanwell/Inventronics/Philips/Moso/Sosen….
Dimming: 0-10V /DALI /PWM / TIMMING  for optional
IP rate: IP66
IK rate: IK09
MOQ: 1 PC
Warranty: 50,000hrs/5 Years
Certificate: CE ROHS  ISO9001 ISO14001
Availability:

MODEL AGSL0101 AGSL0102 AGSL0103 AGSL0104
Power 30W 60W 80W 100W 120W 150W 200W 240W
LED Lumileds/Osram/Nichia/Cree
Lumen Efficiency 140 lm/W(150-170 lm/W optional)
CCT 2200K-6500K
CRI Ra≥70 (Ra>80 optional)
Beam Angle TYPE II-M,TYPEIII-M
Driver Inventronics/Meanwell/Osram/Philips/Sosen
Input Voltage 100-277V AC (277-480V AC optional), 50/60Hz
PF ≥0.95
Dimming 0-10V/Dali 2/PWM/Timer Optional
IP Grade IP66
IK Grade IK09
Working Temp -20℃ ~ 50℃
Certificate CE/RoHS/ISO9001/ISO14001
Warranty 5 years
Options SPD/Long cable/ Photocell/NEMA/Zhaga
Supported Files LM79/LM80/TM21/IES File/DiaLux Simulation/Salt Spray Test Report/Vibration Test Report etc.

AGSL01尺寸

AGSL01
