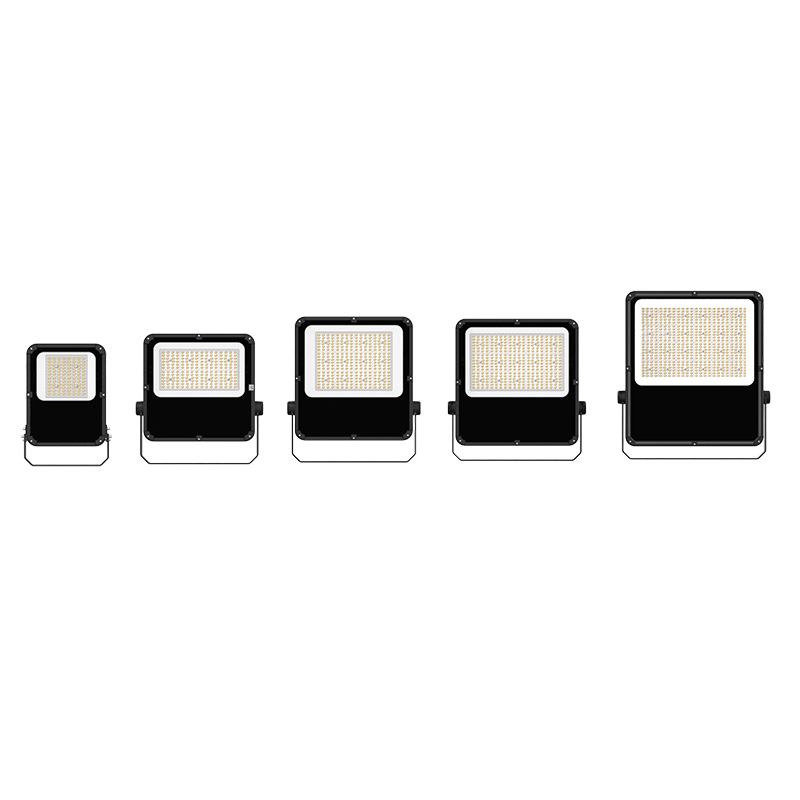

| MODEL | AGFL0801 | AGFL0802 | AGFL0803 | AGFL0804 | AGFL0805 |
| System Power | 50W | 100W | 150W | 200W | 300W |
| LED Type | SMD 2835/3030 | ||||
| Driver Type | MW/Inventronics/MOSO/Sosen etc. | ||||
| Lumen Efficiency | 130lm/W (150/180lm/W Optional) | ||||
| CCT | 2200K-6500K | ||||
| CRI | Ra≥70 | ||||
| Beam Angle | 25°/45°/60°/90°/120° | ||||
| Input Voltage | 100-277Vac(277-480Vac Optional) | ||||
| Power Factor | ≥0.90 | ||||
| Frenquency | 50/60 Hz | ||||
| Surge Protection | 6kv line-line,10kv line-earth | ||||
| Dimmable | Dimmable (0-10v/Dali 2/PWM/Timer) or Non Dimmable | ||||
| IP ,IK Rating | IP66, IK08 | ||||
| Body Material | Die-cast ALuminum | ||||
| Opreating Temp | -20℃ -+50℃ | ||||
| Warranty | 5 Years | ||||
