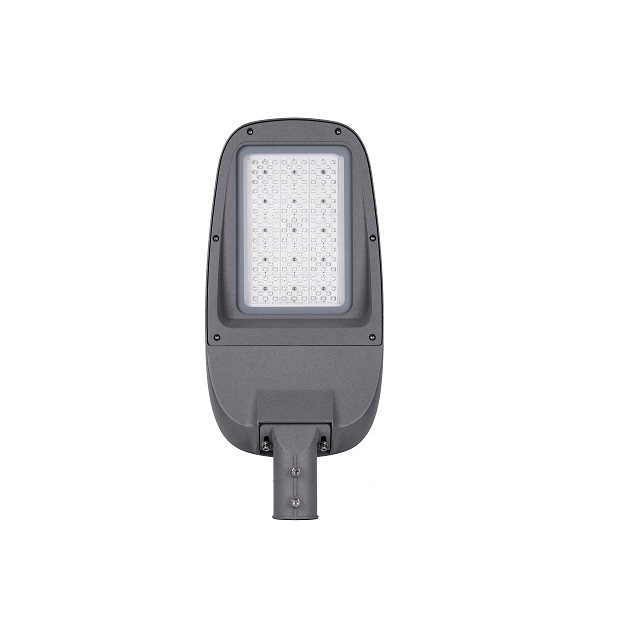

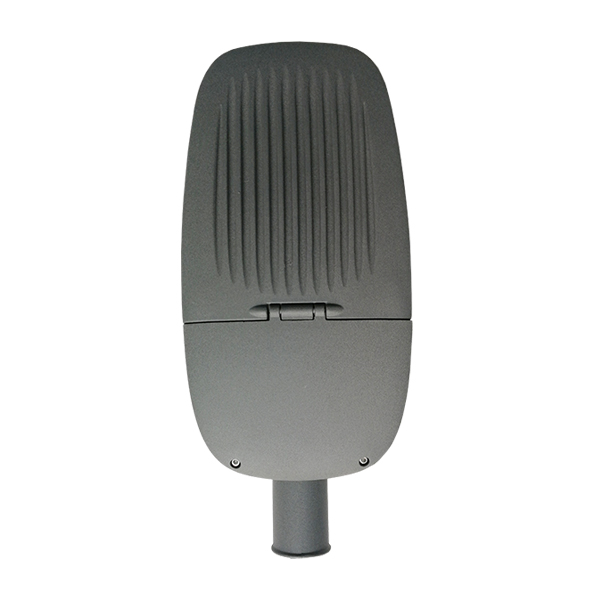

China Led Street Road Lamps Lighting Factory AGSL03 LED Street Light

AllGreen China Led Street Road Lamps Lighting Factory
Glass Cover Design
High lumen Efficiency up to 170lm/W
90° Adjustable Arm
Streamlined Design
Multiple Beam Angle
On off switch/Photocell/NEMA/Zhaga Optional
Beam Angle:TYPE II-S,TYPE II-M,TYPEIII-S,TYPEIII-M
LED Brand: Lumileds/Osram/Nichia/Cree
Driver: Meanwell/Inventronics/Philips/Moso/Sosen….
Dimming: 0-10V /DALI /PWM / TIMMING  for optional
IP rate: IP66
IK rate: IK09
MOQ: 1 PC
Warranty: 50,000hrs/5 Years
Certificate: CE ROHS  ISO9001 ISO14001
Availability:

MODEL AGSL0301 AGSL0302 AGSL0303 AGSL0304
Power 30W 50W 80W 120W 150W 200W 250W 300W
LED Lumileds/Osram/Nichia/Cree
Lumen Efficiency 140lm/W (150-170 lm/W optional)
CCT 2200K-6500K
CRI Ra≥70 (Ra>80 optional)
Beam Angle TYPE II-S,TYPE II-M,TYPEIII-S,TYPEIII-M
Driver Inventronics/Meanwell/Osram/Philips/Sosen
Input Voltage 100-277V AC (277-480V AC optional), 50/60Hz
PF ≥0.95
Dimming 0-10V/Dali 2/PWM/Timer Optional
IP Grade IP66
IK Grade IK09
Working Temp -20℃ ~ 50℃
Certificate CE/RoHS/ISO9001/ISO14001
Warranty 5 years
Options SPD/Long cable/On off switch/ Photocell/NEMA/Zhaga
Supported Files LM79/LM80/TM21/IES File/DiaLux Simulation/Salt Spray Test Report/Vibration Test Report etc.

AGSL03尺寸

AGSL03
