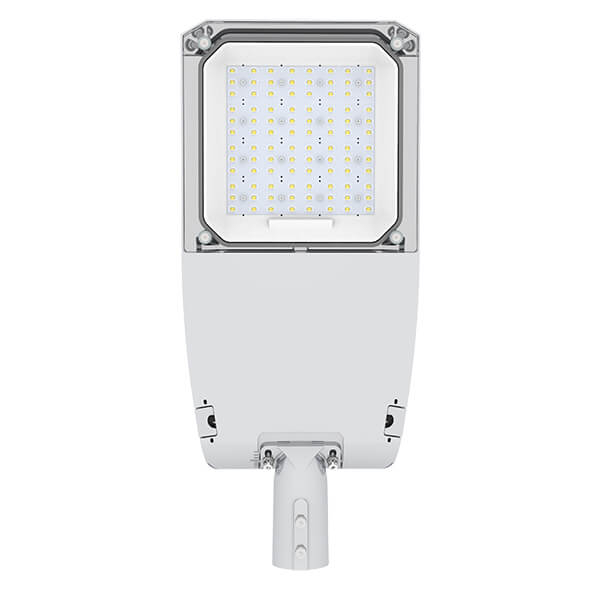

Multiple Beam Angle LED Street Light AGSL09

Streamlined Design
Excellent Heat Dissipation
Multiple Beam Angle
Tool-Free Design
Power Range 30-200W
Availability:


MODEL AGSL0901 AGSL0902 AGSL0903
Power 30W 50W 60W 80W 100W 120W 150W 200W
Luminous    Flux 3900lm 4500lm 7800lm 10400lm 13000lm 15600lm 19500lm 26000lm
Lumen Efficiency 130lm/W(140-150lm/W optional)
CCT. 2700K-6500K
Color Rendering Index Ra≥70(Ra>80 optional)
Beam Angle TYPE II-S,TYPE II-M,TYEIII-S,TYE III-M
Input Voltage 100-277V AC(277-480V AC optional)
Power   Factor ≥0.95
Frequency 50/60Hz
Surge Protection Constant Current
Dimmable Dimmable(0-10V/Dali2/PWM/Timer)or Non Dimmable
IP,IK Rating IP66,IK08
Operating Temp. -20℃~+50℃
Lifespan L70≥50,000 hours
Warranty 5 years


AGSL09 LED Street Light Spec 2023-1

AGSL09 LED Street Light Spec 2023-2AGSL09 LED Street Light Spec 2023-22AGSL09 LED Street Light Spec 2023-23
